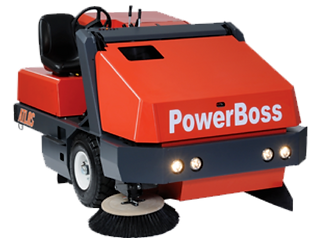

Armadillo Powerboss Atlas

Area coverage up to 184,800 sq ft per/hour

The Armadillo Atlas offers a quality cost effective sweeper that will provide years of consistent reliable service. Manufactured to a heavy equipment design criteria, it meets the most rigorous of cleaning requirements.



The new Atlas sweeper is the result of market driven ideas, state of the art design & manufacturing expertise. This unit incorporates features & benefits that make owning & operating a power sweeper as productive & uncomplicated as it could ever be.

The Armadillo Atlas is a mid-range, powerful vacuum sweeper suitable for medium areas with tough applications.



Features:

 - Available in Gas & LP GM 1.6 litre tier 111, 4                  cylinder or diesel, Kubota 37.5 HP liquid cooled 3          cylinder.



  - Powerful Dust Collection System: Vacuumized main       brush chamber, Perma Pre-Filter eliminates dust           before reaching the panel filter. 95 ft2 synthetic             dust panel filter & an aggressive filter vibrating               Exceptional system to release the dust from the             filter.



 - Quiet operation of only 83 dba noise level in full              operation.



 - Premium Hydraulics System: The straight hydraulics      system eliminates microprocessors & electro                hydraulic valves. Such techniques to engage both        the main side brush contributes to a more reliable &      cost efficient system.



 - 60" inch Multi Level High Dump: Complete with              safety vision dumping system the feature                        allows the operator to safely & easily dispose of            debris at any height up to the standard 60" inch            waste receptacle. The hopper also features a large        opening for material which should not be swept,            providing the operator a convenient place to                  deposit materials that would otherwise be left                  behind.



  - Safety Vision Dump Window: Provides a safe, clear       view of the hopper position when emptying                     debris into the dumpster. This feature is designed         to provide safety when dumping & to minimize               accidental damage to the machine.



  - Retractable side brush & hydraulic motor assembly       which protects the motor & prolongs wear of the             brush.



 - Main brush wear indicator, manual adjustment &          free float application: Indicator ajusts according to         level of wear of the main bush which can be                  manually adjusted to maximum position when the          brush bristles get low. Free float application allows        cleaning of uneven surfaces.



 - Ergonomic Operation: Roomy open cockpit with            adjustable high back seat, power steering (tilt                steering wheel), comfortable pedal.



 - Excellent Manoeuvrability: Rear steering allows U          Turns of less than 10 feet within isles.



 - Robust steel frame construction.



 - Exceptional Ground Clearance: The power climb with    23" inch diameter tyres allows the unit to easily              manoeuvre over rough terrain, including speed              humps & standard 4" curbs. This extra ground                clearance provides the opportunity to sweep                  sidewalks & medians without damage to the                  machine.



 - Swivel engine swing for ease of engine                          accessibility for routine engine maintenance.
